Tanks & Tanks Accessories

Bespoke Fluid Storage Tanks

Space-saving and robust these steel self bunded tanks are the bespoke solution for the safe storage of drained diesel, coolant, brake fluid, screenwash, and waste oil. The Bespoke tanks can be installed as a single storage unit to contain individual fluids or tanks that can be split internally and consist of up to 4 compartments.

Internal compartments range from 500-2,000 liters depending on the customer’s requirements. Larger units are available, please contact us for details. Each tank is steel and self-bunded for maximum performance and safety.

Extra optional features include a dispensing pump for diesel
reclamation, giving our customer a useful return on the product.

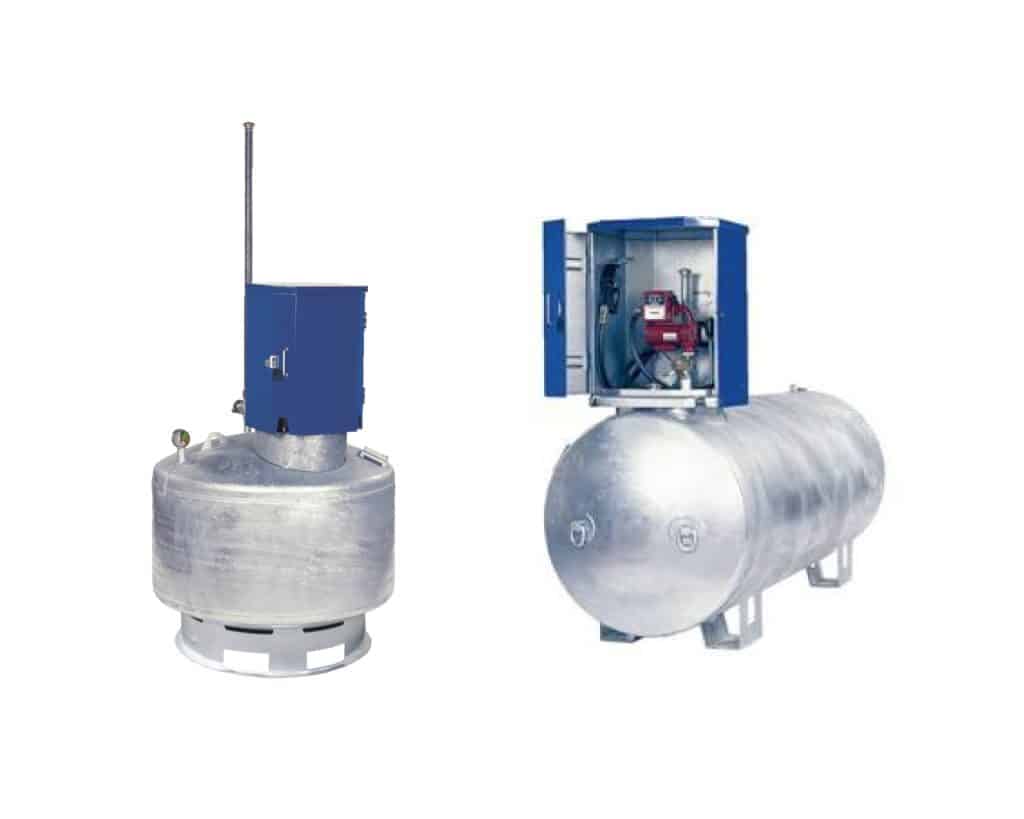

Petrol Tanks

We supply a range of fuel-safe storage tanks, they are designed and approved for the above-ground storage of vehicle fuel. They can be installed either inside or outside.

Due to various equipment and accessories available you will get a petrol storage tank specifically meeting your requirements.

The tanks are available in sizes of either 200, 500, 995 or 3,000 Litres. All models are recommended to be fitted with a fuel dispensing pump for reclamation and a lockable cabinet to house and secure the pump. Larger units are available, please contact us for details.

Double wall design.
Inside and outside hot dip Galvanized for protection against corrosion. Optional Extras: Inside raw, outside lacquered.
Innovative active and permanently working vacuum leak monitoring system working without any power supply.
Explosion blast-proof construction (Petrol tanks only).
Manhole cover with rim to collect small quantities of fluid spillage

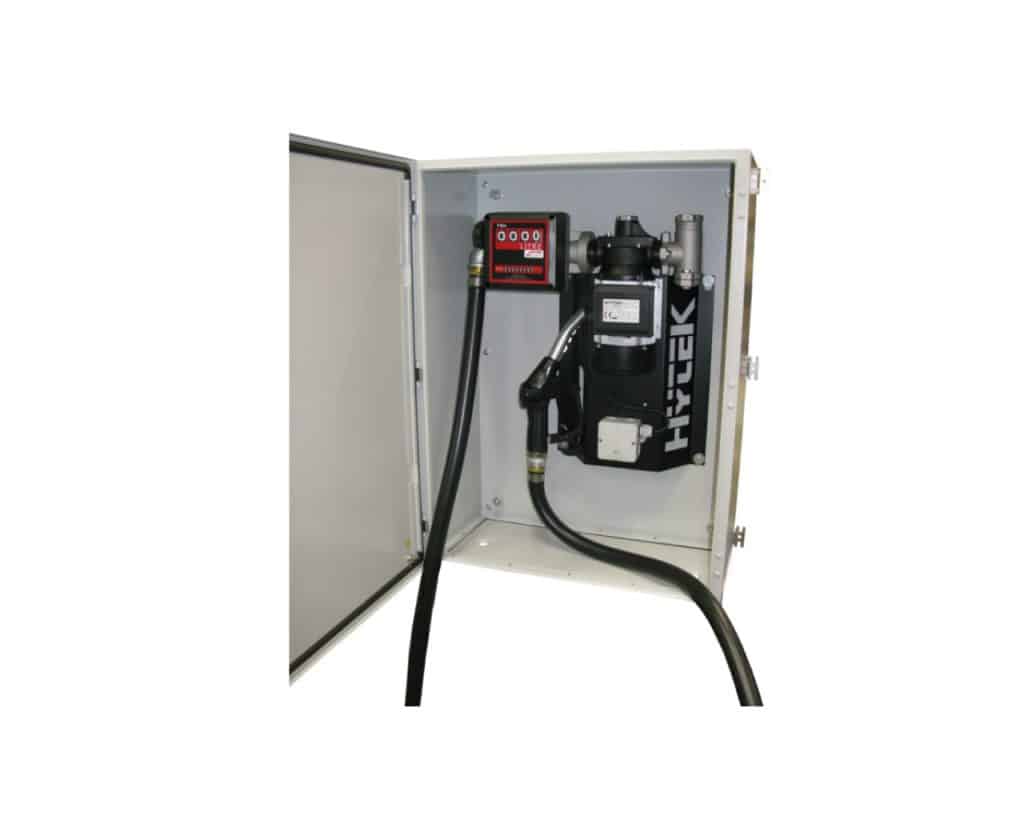

GCMK3 Spectra Diesel Pump

Self-priming vane pump unit
Choose from pumping speeds of 56L/min, 75L/min, 90L/min
Flanges make for an easy dissembling if required
Universal top or bottom entry pipework (just move the flange/elbow round)
Easy access meter calibration adjustment
Easy access to pump vanes & filter for servicing
Built in nozzle hanger, accepts all nozzles, can be padlocked

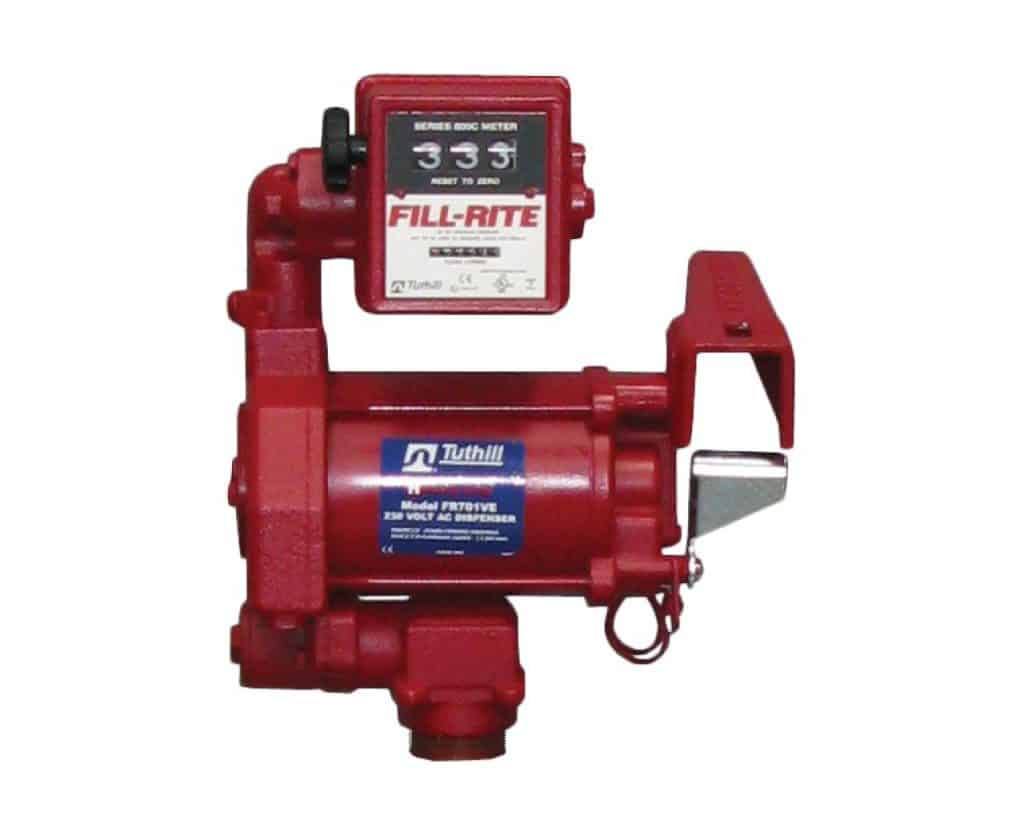

Fill-Rite 701 HD Flame-proof Pump

Suitable with petrol, diesel or biodiesel up to B30
Heavy duty self-priming vane pump for direct drum or tank
Max. flow 50L/min 2” BSPP drum/tank adaptor
Nozzle operated motor off switch & bypass valve
30 min duty cycle motor c/w thermal cut out
Weatherproof to IP55

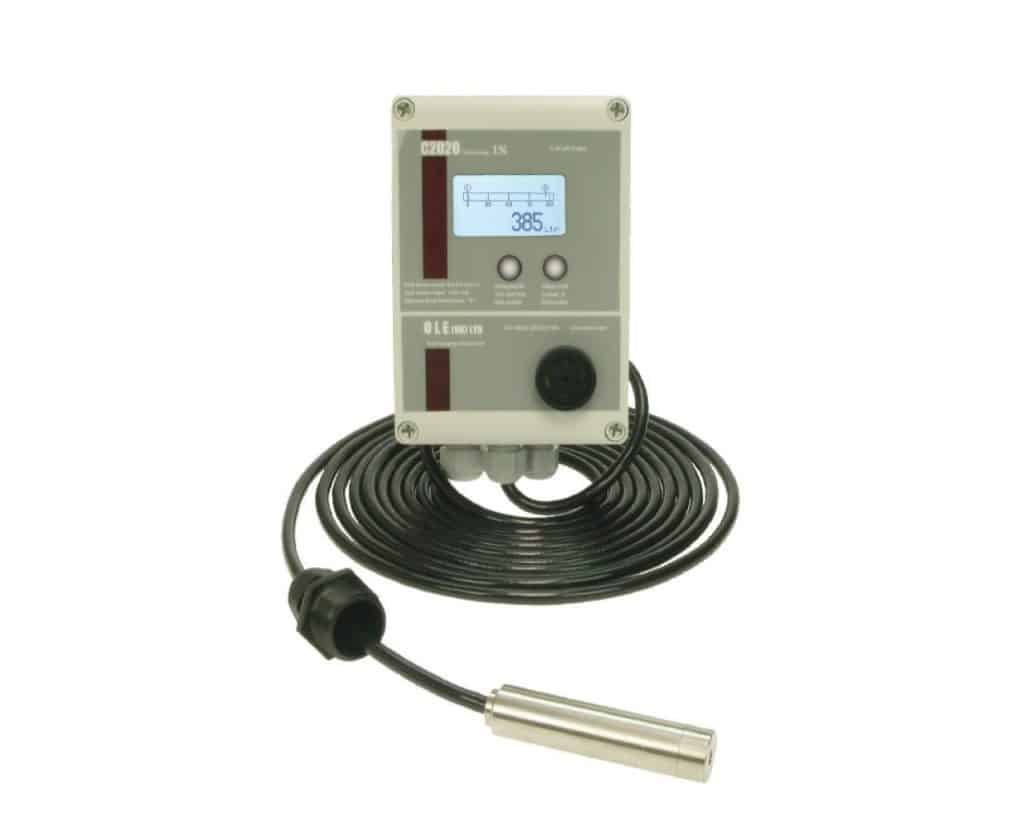

GC2020 Tank Gauge

Accuracy +/-1% of tank capacity.
Suitable with diesel, biodiesel up to B100, AdBlue® & antifreeze.
Suits tanks 0.6m ‑ 3m high. Probe can be extended to 100m. (TGE.CABLE)
Electronic display with backlight (turns off after 1 hour).
Gives continuous readouts in litres & shows a % bar.
Power supply can be 230V, 100V or 24VDC.
Includes 4‑20ma output. Can connect to a BMS (building management system).
Tank probes are an electronic pressure sensor with a 1" BSPT male fitting.
Weatherproof to IP55.
Level probes must be suspended 50mm from the bottom of the tank.
1 gauge required per tank.

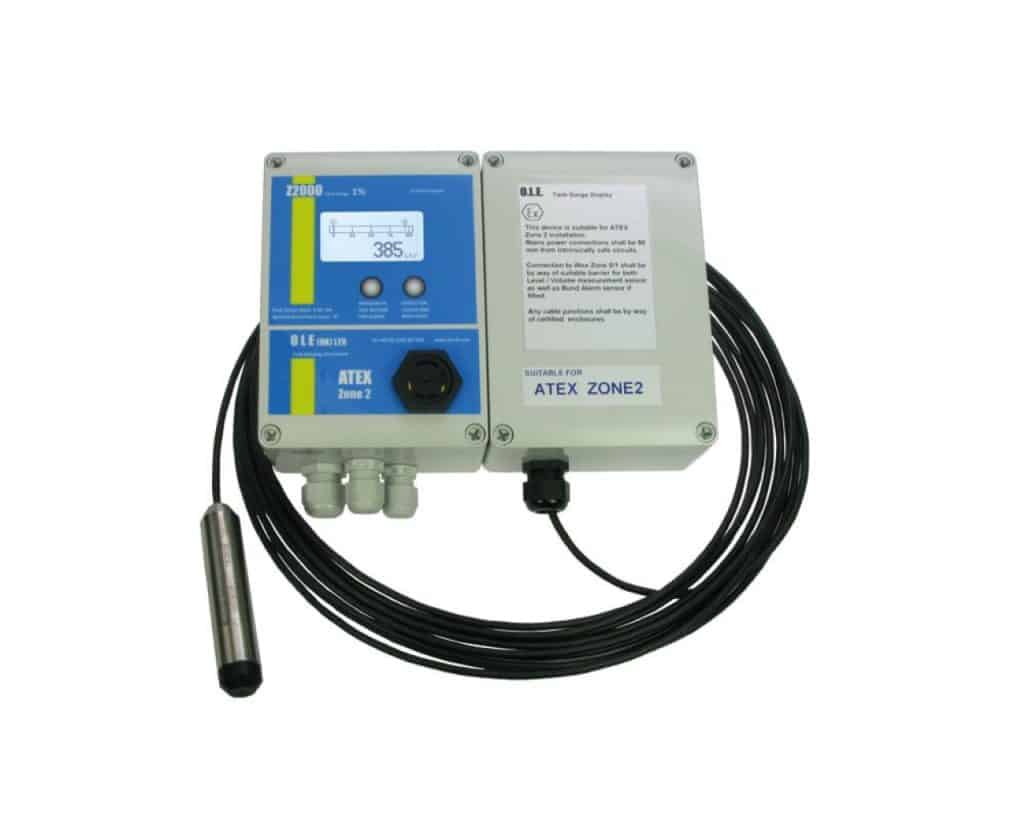

GCZ2000 Tank Gauge - ATEX Certified

Accuracy +/‑1% of tank capacity.
Suitable with petrol, kerosene, diesel, biodiesel up to B100, AdBlue® & antifreeze.
Suits tanks 0.6m ‑ 3m high (AdBlue® 2.5m). Probe cable can be extended to 100m. (TGE.CABLE).
Electronic display with backlight (turns off after 1 hour).
Weatherproof to IP55.
Gives continuous readout in litres & shows a % bar.
Power supply can be 230V, 110V or 24VDC
Includes 4‑20mA output. Can connect to a BMS (building management system).
Tank probes are an electronic pressure sensor with a 1” BSPT male fitting.
Level probes must be suspended 50mm from the bottom of the tank.
1 gauge required per tank. Slave display option available.
Supplied with High/Low Level alarms.
