Sensor Identify

SENSOR IDENTIFY is a sensor based sorter with an inductive bar, which uses the electrical conductivity of the individual particles as a separation feature.

Induction sensors detect the electrical conductivity of the particles fed in, in order to sort them accordingly. The machine impresses with its high level of accuracy, when sorting particles with different electrical conductivity, such as metals and non-metals. The conductive metals are often sorted from low-value material streams with a high proportion of plastic, wood or minerals. Detected particles are sorted out using compressed air to ensure precise separation.

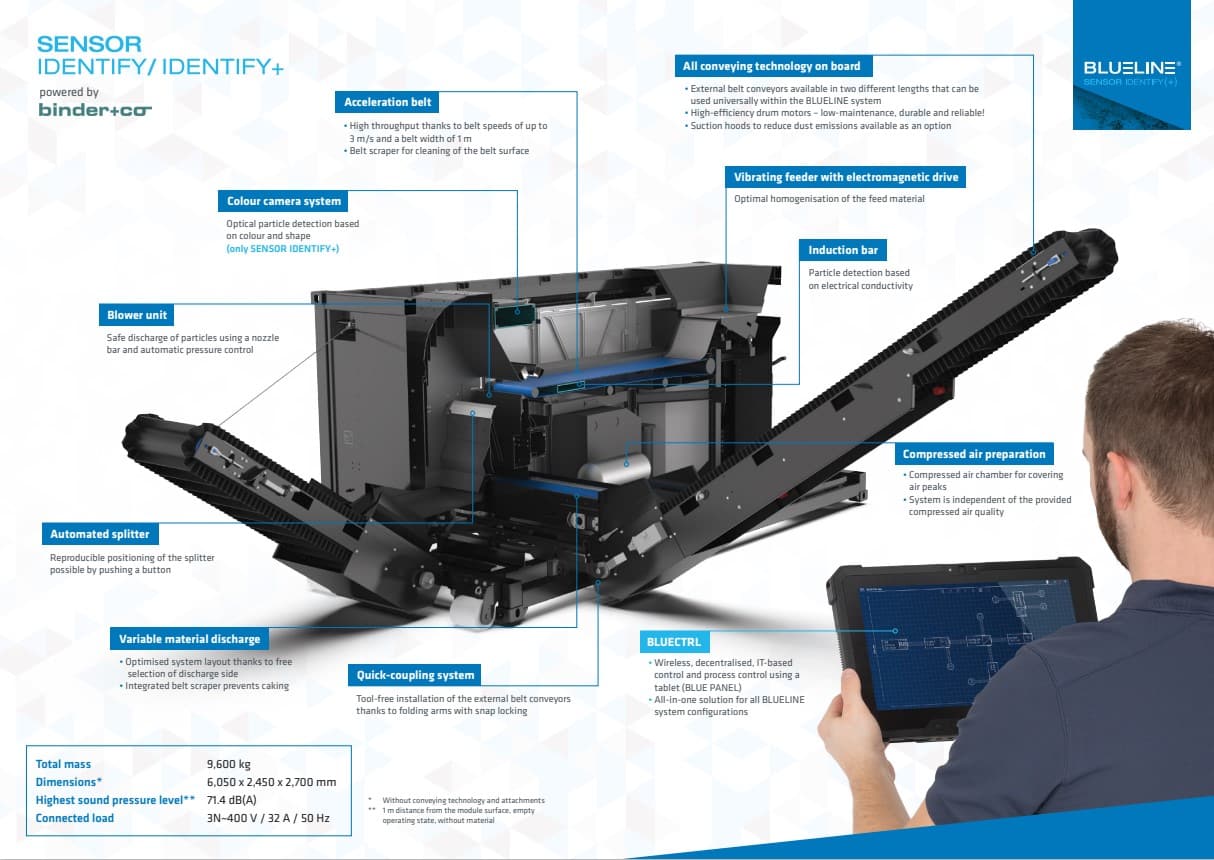

Specifications  & Options

  • Acceleration belt

    • High throughput thanks to belt speeds of up to 3 m/s and a belt width of 1 m • Belt scraper for cleaning of the belt surface

  • Blower unit

    Safe discharge of particles using a nozzle bar and automatic pressure control

  • Automated splitter

    Reproducible positioning of the splitter possible by pushing a button

  • Variable material discharge

    • Optimised system layout thanks to free selection of discharge side • Integrated belt scraper prevents caking

  • Induction bar

    Particle detection based on electrical conductivity

  • Vibrating feeder with electromagnetic drive

    Optimal homogenisation and dosing of the feed material

  • All conveying technology on board

    • External belt conveyors available in two different lengths that can be used universally within the BLUELINE system • High-efficiency drum motors – low-maintenance, durable and reliable! • Suction hoods to reduce dust emissions available as an option

  • Compressed air preparation

    • Compressed air chamber for covering air peaks • System is independent of the provided compressed air quality

  • BLUECTRL

    • Wireless, decentralised, IT-based control and process control using a tablet (BLUE PANEL) • All-in-one solution for all BLUELINE system configurations

  • Quick-coupling system

    Tool-free installation of the external belt conveyors thanks to folding arms with snap locking

  • Acceleration belt

    High throughput thanks to belt speeds of up to 3 m/s and a belt width of 1 m • Belt scraper for cleaning of the belt surface

  • Blower unit

    Safe discharge of particles using a nozzle bar and automatic pressure control

  • Automated splitter

    Reproducible positioning of the splitter possible by pushing a button

  • Variable material discharge

    • Optimised system layout thanks to free selection of discharge side • Integrated belt scraper prevents caking

  • Induction bar

    Particle detection based on electrical conductivity

  • Vibrating feeder with electromagnetic drive

    Optimal homogenisation and dosing of the feed material

  • All conveying technology on board

    • External belt conveyors available in two different lengths that can be used universally within the BLUELINE system • High-efficiency drum motors – low-maintenance, durable and reliable! • Suction hoods to reduce dust emissions available as an option

  • Compressed air preparation

    • Compressed air chamber for covering air peaks • System is independent of the provided compressed air quality

  • BLUECTRL

    • Wireless, decentralised, IT-based control and process control using a tablet (BLUE PANEL) • All-in-one solution for all BLUELINE system configurations

  • Quick-coupling system

    Tool-free installation of the external belt conveyors thanks to folding arms with snap locking

Total mass
9,600 kg
Dimensions*
6,050 x 2,450 x 2,700 mm
Grain size
4 to 100 mm
Connected load
3N~400 V / 32 A / 50 Hz
Total mass
9,600 kg
Dimensions
6,050 x 2,450 x 2,700 mm
Grain size
4 to 100 mm
Connected load
3N~400 V / 32 A / 50 Hz
