Feed Vibro



feed_vibro

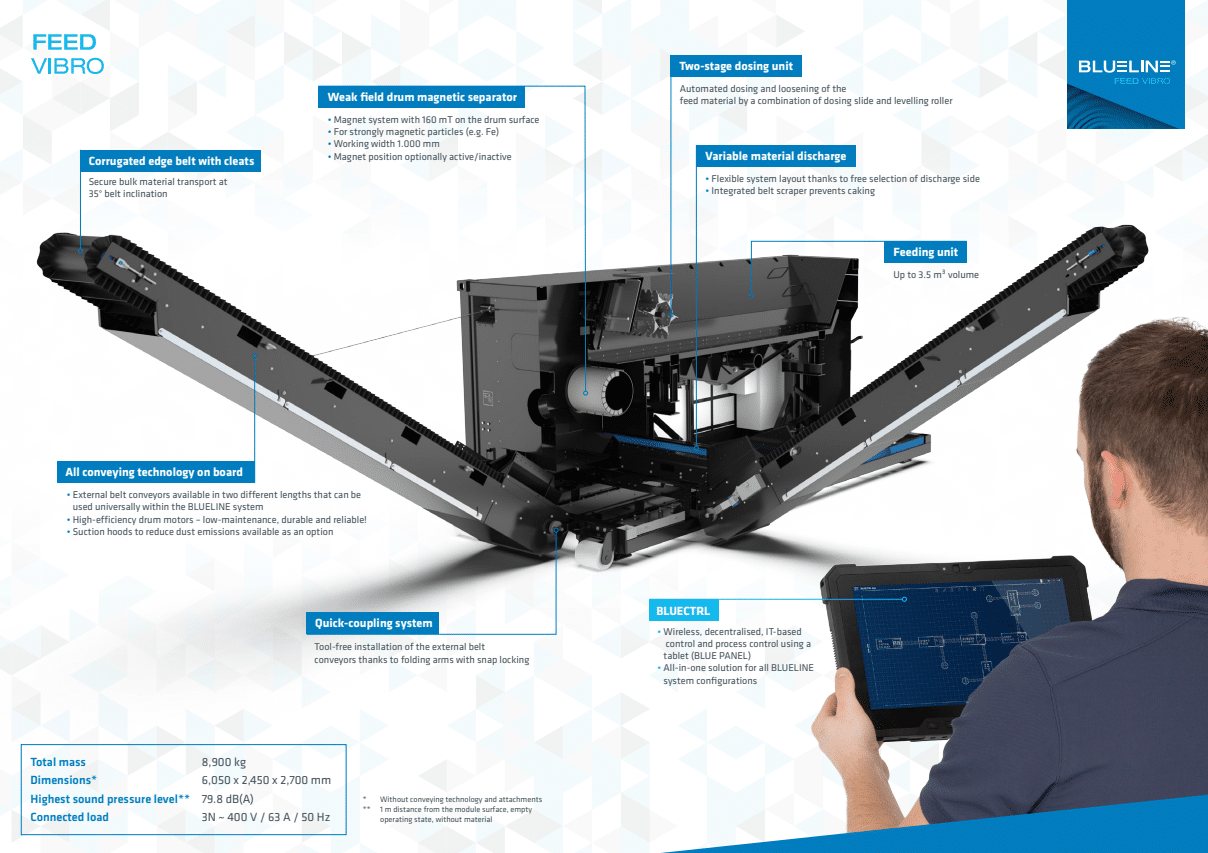

The universal feeding and magnetic separation station FEED VIBRO is an extremely versatile and efficient solution for dosing and processing a wide variety of input materials.

The hopper feeder combined with an levelling roller and a dosing slide enables reliable and controlled material feed. The following integrated magnetic drum separator with selectable strength allows efficient seperation of magnetic particles and produces high purity products.

It is also possible to set the magnet position to inactive for pure dosing without magnetic separation.

Specifications  & Options

  • Weak field drum magnetic separator

    • Magnet system with 160 mT on the drum surface • For strongly magnetic particles (e.g. Fe) • Working width 1.000 mm • Magnet position optionally active/inactive

  • Two-stage dosing unit

    Automated dosing and loosening of the feed material by a combination of dosing slide and levelling roller

  • Feeding unit

    Up to 3.5 m³ volume

  • Variable material discharge

    • Optimised system layout thanks to free selection of discharge side • Integrated belt scraper prevents caking

  • All conveying technology on board

    • External belt conveyors available in two different lengths that can be used universally within the BLUELINE system • High-efficiency drum motors – low-maintenance, durable and reliable! • Suction hoods to reduce dust emissions available as an option

  • Corrugated edge belt with cleats

    Secure bulk material transport at 35° belt inclination

  • BLUECTRL

    • Wireless, decentralised, IT-based control and process control using a tablet (BLUE PANEL) • All-in-one solution for all BLUELINE system configurations

  • Quick-coupling system

    Tool-free installation of the external belt conveyors thanks to folding arms with snap locking

  • Weak field drum magnetic separator

    • Magnet system with 160 mT on the drum surface • For strongly magnetic particles (e.g. Fe) • Working width 1.000 mm • Magnet position optionally active/inactive

  • Two-stage dosing unit

    Automated dosing and loosening of the feed material by a combination of dosing slide and levelling roller

  • Feeding unit

    Up to 3.5 m³ volume

  • Variable material discharge

    • Optimised system layout thanks to free selection of discharge side • Integrated belt scraper prevents caking

  • All conveying technology on board

    • External belt conveyors available in two different lengths that can be used universally within the BLUELINE system • High-efficiency drum motors – low-maintenance, durable and reliable! • Suction hoods to reduce dust emissions available as an option

  • Corrugated edge belt with cleats

    Secure bulk material transport at 35° belt inclination

  • Corrugated edge belt with cleats

    Secure bulk material transport at 35° belt inclination

  • BLUECTRL

    • Wireless, decentralised, IT-based control and process control using a tablet (BLUE PANEL) • All-in-one solution for all BLUELINE system configurations

  • Quick-coupling system

    Tool-free installation of the external belt conveyors thanks to folding arms with snap locking
Total mass
8.900 kg
Dimensions*
6,050 x 2,450 x 2,700 mm
Grain size
up to 200mm
Connected load
3N~400 V / 63 A / 50 Hz
Total mass
8,900 kg
Dimensions
6,050 x 2,450 x 2,700 mm
Grain size
up to 200mm
Connected load
3N~400 V / 63 A / 50 Hz
