Support Mover



support_mover

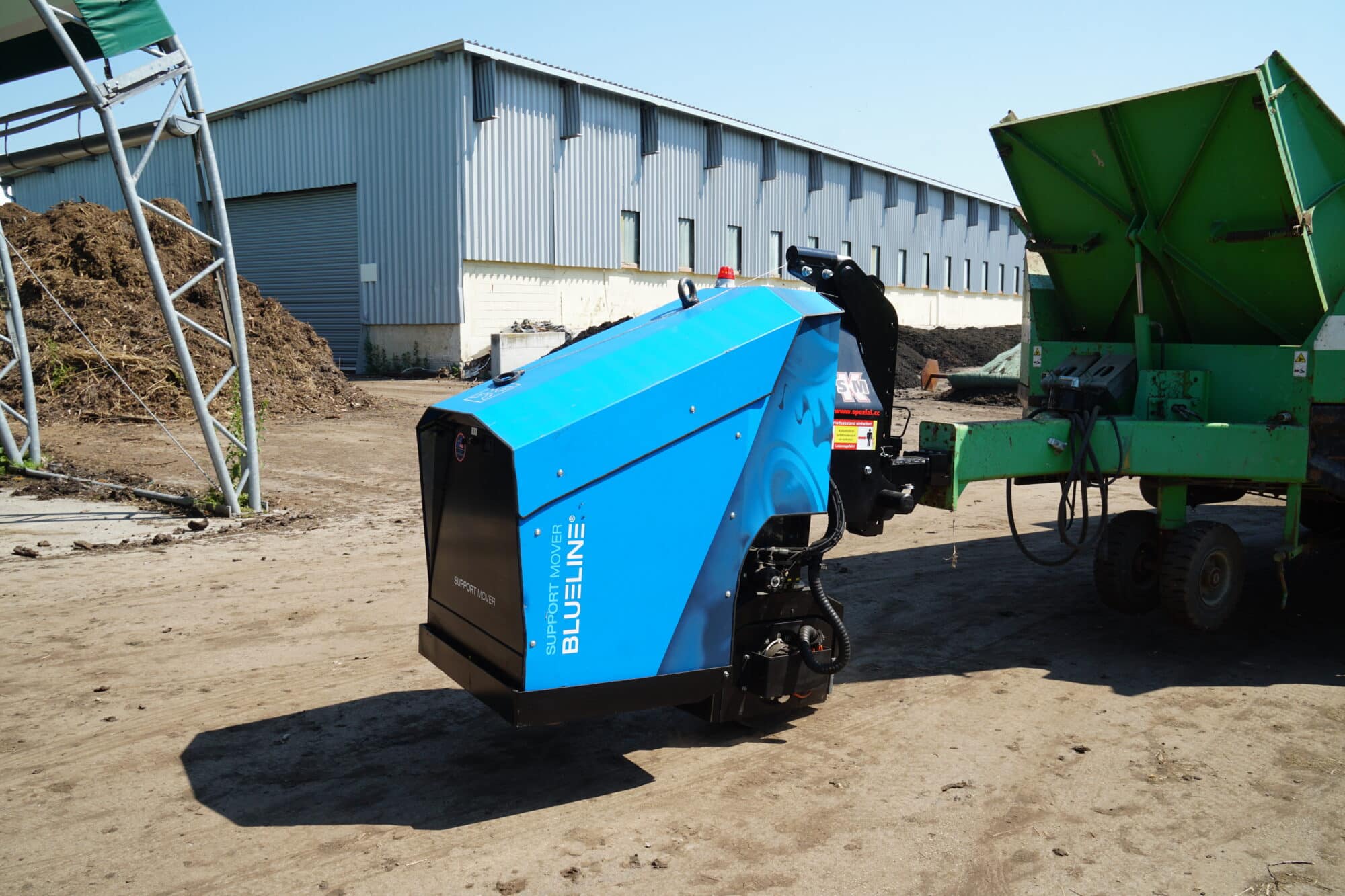

SUPPORT MOVER is our innovative solution for comfortable manoeuvring your BLUELINE modules and your Roll-on/Roll-off material containers. Designed with ease of use and efficiency in mind, this device allows your equipment and materials to be moved safely and effectively within the work area.

The SUPPORT MOVER from BLUELINE is battery-powered, meaning you don’t have to worry about cables or access to power sources. The powerful battery ensures a long operating time and makes it possible to move heavy loads with ease. Charging is simple and straightforward, and the system’s energy efficiency helps keep running costs down.

Specifications  & Options

  • Automatic locking

    For safe transportation of a module/container

  • Safety equipment

    During operation, the system issues an audible warning signal and the warning light flashes

  • Flexible &Manoeuvrable

    Turning angle of > 90 degrees for exact positioning in the most confined spaces

  • Maintenance flap

    To easily reach the charging cable in the SUPPORT MOVER

  • Wireless remote control

    For convenient and ergonomic operation. No driving licence or other qualifications are needed for operation. Range 500 m / Response time 100 ms / Frequency band 863-870 MHz (20 channels)

  • Battery

    High-capacity wet cell battery with charge status display and charging station

  • Hook support

    Locking device for simple transportation of the module/container

  • Automatic locking

    For safe transportation of a module/container

  • Safety equipment

    During operation, the system issues an audible warning signal and the warning light flashes

  • Flexible &Manoeuvrable

    Turning angle of > 90 degrees for exact positioning in the most confined spaces

  • Maintenance flap

    To easily reach the charging cable in the SUPPORT MOVER

  • Wireless remote control

    For convenient and ergonomic operation. No driving licence or other qualifications are needed for operation. Range 500 m / Response time 100 ms / Frequency band 863-870 MHz (20 channels)

  • Battery

    High-capacity wet cell battery with charge status display and charging station

  • Hook support

    Locking device for simple transportation of the module/container
Total mass
1.650 kg
Dimensions*
1.780 x 880 x 1.630 mm
Payload
Up to 16 t with a 3 % incline
Power supply
wet cell battery 80 V / 180 Ah
Total mass
1.650 kg
Dimensions
1.780 x 880 x 1.630 mm
Payload
Up to 16 t with a 3 % incline
Power supply
wet cell battery 80 V / 180 Ah
